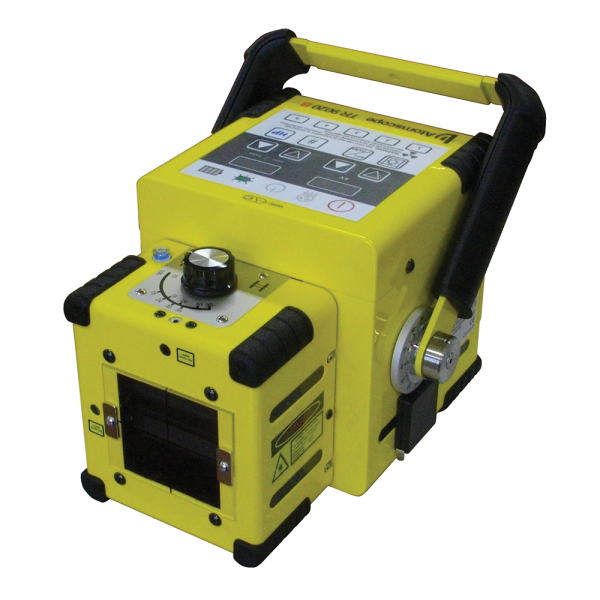

The TRB9020V is a battery-powered, portable x-ray unit, perfectly suited for the equine market. Weighing just 7.1kg (including the battery), this compact and lightweight unit features a detachable battery system for uninterrupted operation. A dual laser pointer in the collimator ensures precise SID alignment. It can perform approximately 500 exposures per charge and is fully compatible with all major DR Systems.
| Model | TRB9020V |
| Max Output Power | 1.35kW |
| Line Voltage | DC, 59.2V |
| Focal Spot | 0.8 |
| kV Range | 40kV-90kV (2kV step) |
| mA Range | 20mA@40-60kV, 15mA@62-80kV 10mA@82-90kV, High power mode:15mA@82-90kV |
| Timer | 0.01-1.00sec, High power mode: 0.01-0.3sec |
| Memory Storage | 5 Presets |
| Laser Pointer | Dual Laser |
| Size | 254 (L) x 220 (W) x 192 (H) mm |
| Weight | 7.1 kgs |
| Accessories | Battery, Battery Charger, Handheld Exposure Switch and Cord |
