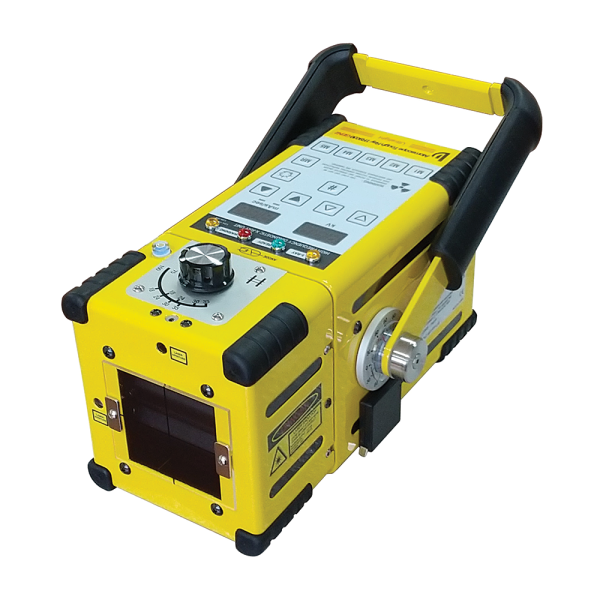

The TR9030V is a high-spec, lightweight, and durable portable X-ray unit, expertly designed for the equine market. Compact and easy to transport, this advanced version of the HF8020 delivers a powerful maximum output of 90kV, enabling radiography of most equine body parts. Its robust protective casing and low input voltage operation are key features. The unit includes 5 memory presets for storing X-ray exposure techniques, a dual laser pointer in the collimator ensures precise SID alignment and is fully compatible with all major DR Systems.
| Model | TR9030V |
| Max Output Power | 1.8kW |
| Line Voltage | AC, single phase, 230V, 50/60Hz |
| Focal Spot | 0.8 |
| kV Range | 40kV-90kV (2kV step) |
| mA Range | 30mA(0.02-0.1sec),18mA(0.11-2.0sec)@40-60kV 25mA(0.02-0.1sec),15mA(0.11-2.0sec)@62-70kV 20mA(0.02-0.1sec),12mA(0.11-2.0sec)@72-80kV 15mA(0.02-0.1sec),9mA(0.11-2.0sec)@82-90kV |
| Timer | 0.02 – 2.00 sec |
| Memory Storage | 5 Presets |
| Laser Pointer | Dual Laser |
| Size | 312 (L) x 188 (W) x 157 (H) mm |
| Weight | 6.4 kgs |
| Accessories | Power Cord, Handheld Exposure Switch and Cord |
