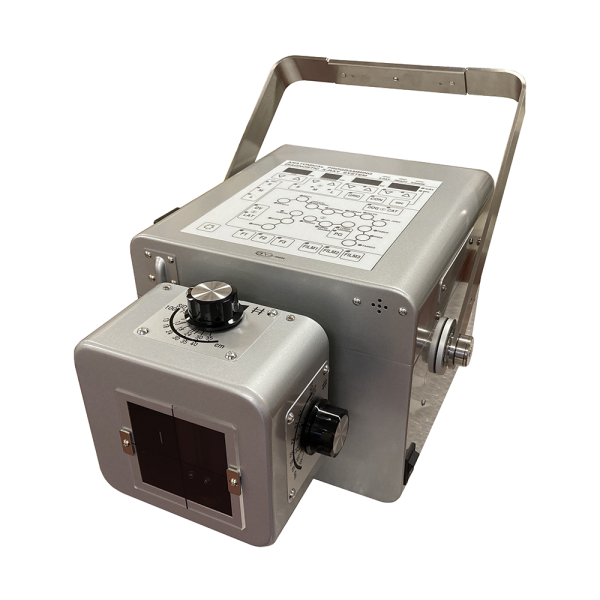

The HF400VA is a high-performance unit designed for the small animal market, offering advanced anatomical programming and shorter exposure times. As a high-spec model of the HF200A+, it delivers a powerful output with a maximum of 100mA and 120kV. With over 1,200 pre-programmed anatomical values for dogs, cats, birds, and small animals, it provides effortless operation. Key program settings include body part thickness, density, FFD range, pregnancy, and options for radiography with or without an x-ray grid and is fully compatible with all major DR Systems.
| Model | HF400VA |
| Max Output Power | 6.0kW |
| Line Voltage | AC, single phase, 230V, 50/60Hz |
| Focal Spot | 1.2 |
| kV Range | 30kV-120kV (2kV step) |
| mA Range | 100mA(0.01-0.1sec),70mA(0.11-2.0sec)@40-50kV 80mA(0.01-0.1sec),56mA(0.11-2.0sec)@52-60kV 70mA(0.01-0.1sec),49mA(0.11-2.0sec)@62-80kV 60mA(0.01-0.1sec),42mA(0.11-2.0sec)@82-100kV 40mA(0.01-0.1sec),28mA(0.11-2.0sec)@102-120kV 60mA(0.01-0.1sec),42mA(0.11-2.0sec)@30-38kV |
| Timer | 0.01 – 2.00 sec |
| Memory Storage | Anatomical Program |
| Laser Pointer | Dual Laser (Optional) |
| Size | 430 (L) x 340 (W) x 250 (H) mm |
| Weight | 21.8 kg |
| Accessories | Power Cord, Handheld Exposure Switch and Cord |
