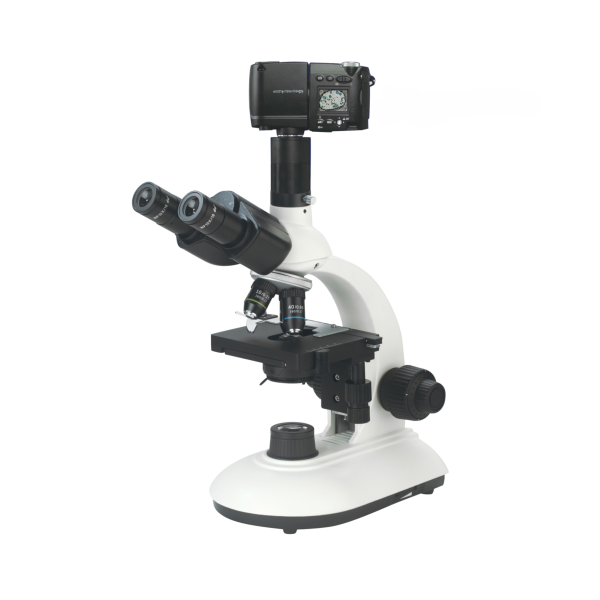

The UNIVET MOBE-404 Bio Plan Achromatic Trinocular Microscope is a high-performance, precision instrument designed for veterinary professionals who require exceptional optical clarity and reliability. Featuring an advanced achromatic optical system, it delivers clear, high-contrast images with true colour fidelity, ideal for examining a wide range of veterinary samples, from tissue cultures to blood smears. The trinocular design allows for both direct viewing and seamless camera integration, making it perfect for documentation and remote observation. With its ergonomic build, the MOBE-404 ensures comfort and ease of use during long sessions.
Camera is not included and is for display purposes only.
SPECIAL ORDER ONLY
No cancellations or returns from firm order.
| Optical System | Finity Optical System |
| Viewing Head | Siedentopf trinocular Head,
Inclined 30°, Rotatable 360°, Interpupilary Distance 50~75mm |
| Eyepiece | WF10X/18 mm |
|
Objective |
Achromatic 4X/0.10 W.D.=13mm |
| Achromatic 10X/0.25 W.D.=6.3mm | |
| Achromatic 40X/0.65 (S) W.D.=0.44mm | |
| Achromatic 100X/1.25 (S,Oil) W.D.=0.3mm | |
| Plan Achromatic 4X/0.10 W.D.=16mm | |
| Plan Achromatic 10X/0.25 W.D.=2mm | |
| Plan Achromatic 40X/0.65 (S) W.D.=0.66mm | |
| Plan Achromatic 100X/1.25 (S,Oil) W.D.=0.42mm | |
| Nosepiece | Quadruple, outward |
| Stage | Stage Size: 115×125mm
Moving range: 50×70mm |
| Condenser | Abbe N.A. 1.25 with Iris Diaphragm |
| Illumination | Halogen Lamp 6V 20W
Wide Voltage: 80V~265V Spare Lamp: 1pc Built In Blue Filter |
| LED Illumination Systems | |
| Fuse | Spare Fuse: 2pcs |
| C-Mount adapter | 1X/0.5X |
