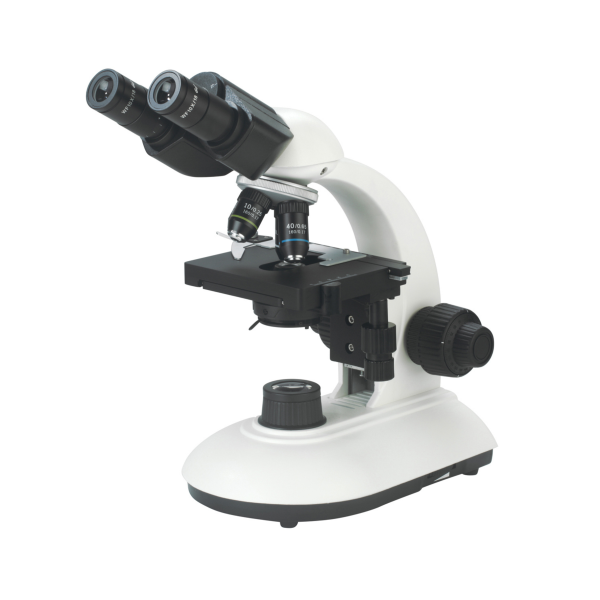

The UNIVET MOBE-403 Bio Plan Achromatic Binocular Microscope is a top of the line microscope designed specifically for veterinary professionals. Featuring an advanced achromatic optical system, it provides high-resolution, sharp, and true-to-life images for accurate diagnostics and analysis. The binocular design ensures ease of use, reducing eye strain during long sessions, while the sturdy build ensures reliability and longevity in busy veterinary environments. Ideal for examining biological samples, tissue cultures, and other veterinary specimens, the MOBE-403 is engineered to meet the demands of veterinary practices.
| Optical System | Finity Optical System |
| Viewing Head | Siedentopf Binocular Head,
Inclined 30°,Rotatable 360°, Interpupilary Distance 50~75mm |
| Eyepiece | WF10X/18 mm |
| Objective | Plan Achromatic 4X/0.10 W.D.=16mm |
| Plan Achromatic 10X/0.25 W.D.=2mm | |
| Plan Achromatic 40X/0.65 (S) W.D.=0.66mm | |
| Plan Achromatic 100X/1.25 (S,Oil) W.D.=0.42mm | |
| Nosepiece | Quadruple, outward |
| Stage | Stage Size: 115×125mm
Moving range: 50×70mm |
| Condenser | Abbe N.A. 1.25 with Iris Diaphragm |
| Illumination | Halogen Lamp 6V 20W
Wide Voltage: 80V~265V Spare Lamp: 1pc Built In Blue Filter |
| LED Illumination Systems | |
| Fuse | Spare Fuse: 2pcs |
