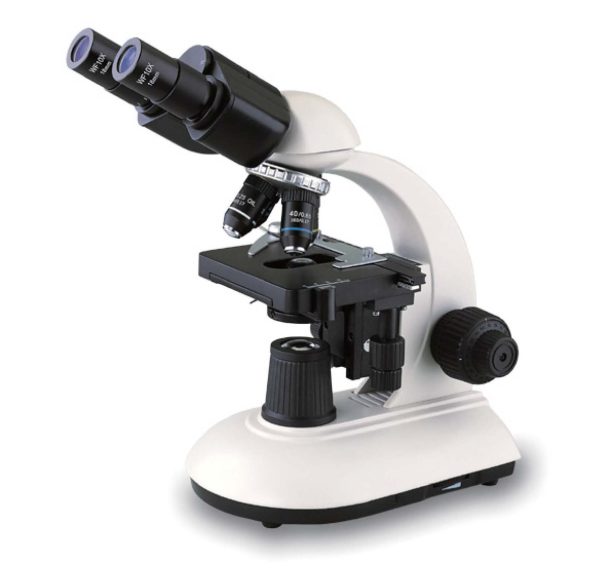

The MOBE-402 Binocular Microscope offers a range of advanced features and specifications. With its durable construction, user-friendly design, and clear imaging, the MOBE-402 is ideal for observing a variety of biological specimens. Its original style and reliable performance make it a great choice for both professional and educational use.
| Optical System | Finity optical system |
| Viewing Head | Siedentopf binocular head |
| Inclined 30°, rotatable 360° | |
| Interpupilary distance 5-75 mm | |
| Eyepiece | WF10X/18 mm |
| Objective | Achromatic 4X/0.10 W.D. = 13 mm |
| Achromatic 10X/0.25 W.D. = 6.3 mm | |
| Achromatic 40X/0.65 W.D. = 0.44 mm | |
| Achromatic 100X/1.25 W.D. = 0.3 mm | |
| Nosepiece | Quadruple, outward |
| Stage | Size: 115 mm x 125 mm Moving Range: 50 mm x 70 mm |
| Condenser | Abbe N.A. 1.25 with iris diaphragm |
| Illumination | Halogen lamp: 6V, 20W |
| Wide Voltage: 80V-265V | |
| Spare Lamp: 1 piece built in blue filter
|
|
| LED Illumination | |
| Fuse | 2 pieces |
