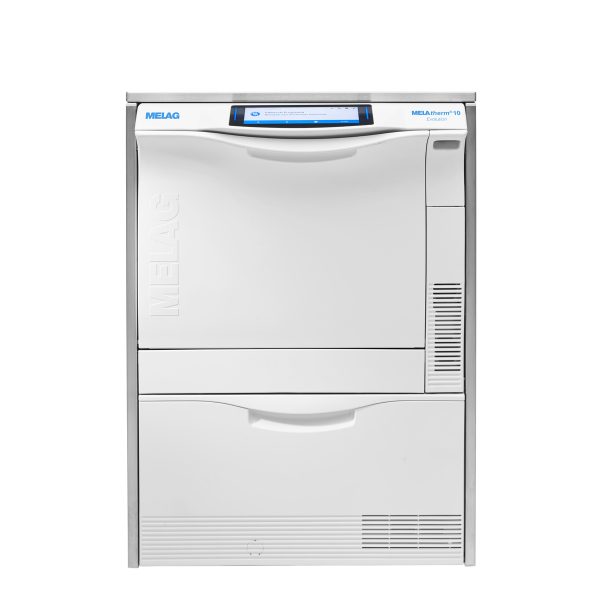

MELAG MELATHERM 10 WASHER

SINGLE PHASE
MEL-10021

MELAtherm® 10 is the solution for fast and safe instrument decontamination. With its practice-optimized washing chamber and a wide range of accessories, MELAtherm® 10 permits the cleaning and disinfection of very large quantities of instruments. The subsequent active drying ensures hand-warm and dry instruments reprocessed within only about 60 minutes.
All the necessary components required for efficient decontamination procedures are integrated in the washer-disinfector in a space-saving way: The dosing of process agents and the documentation of process parameters are performed automatically by MELAtherm® 10. This saves valuable time and allows your staff to take on other duties in practice and clinic.



Benefit from over 80 baskets and adapters to adjust the configuration of the practice-optimized washing chamber to match your needs – regardless of the size and specialization of your practice or clinic. The stackable Flex-baskets and the MELAstore® system represent the best solutions for the decontamination of large quantities of instruments.



MELAdem® 53 included with Washer.

The water treatment unit performs the final rinse with demineralized water, thereby ensuring the protection and care of your instruments. The high-performance MELAdem® 53 even permits the connection of additional devices in your decontamination room.

Programs MELAtherm® 10
DTA / 400 V* DTB / 230 V*
Quick-Program 36 min 53 min
Universal-Program 40 min 59 min
Intensive-Program 51 min 64 min
Ophthalmo-Program 42 min 59 min



Device dimensions (W × H × D) 59,8 × 81,8 (83,6**) × 67,8 cm fits under a 60 cm worktop
Device dimensions (W × H × D) with floor unit 59,8 × 124 × 67,8 cm
Washing chamber (W × H × D) 46,5 × 40,5 × 44,8 cm
Weight 80 kg (86 kg**)
Weight with floor unit 106 kg
Electrical connection DTA 3 N AC 400 V, 50 Hz, 3 × 16 A
Power input DTA 9,3 kW
Electrical connection DTB AC 220 –240 V, 50 Hz, 1 × 16 A
Power input DTB 3,3 kW
Dimensions MELAdem® 53 / 53 C Ø 24 × 57 cm (61,5 cm inc. connecting bend) / Ø 24 × 44,3 cm (48,8 cm)

*Must be installed by an Authorised Melag Service Agent
