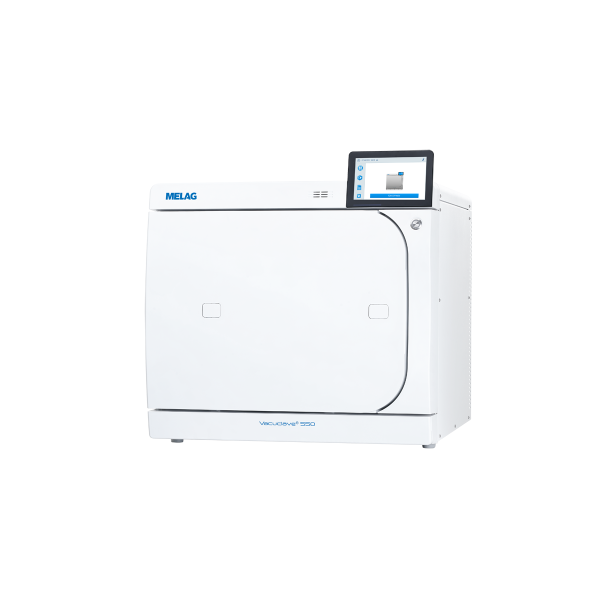

MELAG shows what it means to reinvent sterilization over and over again, Thanks to the extra-large chamber and pioneering innovations, you’ll be ready for all tasks with Vacuclave® 550.
Discover the advantages of our new 50L autoclave for energy-efficient, time- and cost-saving sterilization of your instruments. The new XL chamber design, record cycle times and high loading capacities offer maximum versatility – and even more space for instruments with 16 trays and space for instruments up to 46 cm long.
Made in Germany
MELAG have been developing, producing and optimizing system solutions for instrument reprocessing in Berlin for over 70 years, and stands for the art of engineering and production, with the highest levels of quality.
| Programs* | Operating times | Drying | ||
| DRYtelligence® *** | Time-controlled | |||
| Universal-B | 134 °C, Holding time: 5,5 min
|
13 – 43 min | > 4 min | 13 min
|
| Quick-S | 134 °C,
Holding time: 3,5 min
|
12 – 33 min | > 4 min | 13 min
|
| Gentle-B | 121 °C,
Holding time: 20,5 min
|
25 – 62 min | > 4 min | 13 min
|
| Prion-B | 134 °C,
Holding time: 20,5 min
|
28 – 58 min | > 4 min | 13 min
|
| Chamber size | ø 38 cm x 45 cm long
|
||
| Chamber volume | 53 liters
|
||
| Loading quantity
|
15amp Operation
25 kg unpacked, 11 kg packed, 17.5 kg with MELAstore®, 3.5 kg textiles
|
13amp Operation
17,5 kg unpacked, 9 kg packed, 14 kg with MELAstore®, 2 kg textiles
|
|
| Device dimensions
(W x H x D)
|
63,6 x 59,0 x 71,5 cm
height incl. display 65 cm device fits on a 60 cm table top
|
||
| Weight | 98 kg (operating weight up to 127 kg)
|
||
| Power supply | 220 – 230 V / 50 – 60 Hz
|
||
| Power consumption | 15amp Operation
3.400 Watts |
13amp Operation
2.700 Watts
|
|
| Documentation interfaces | USB, Network
|
||
*Must be installed by an Authorised Melag Service Agent
