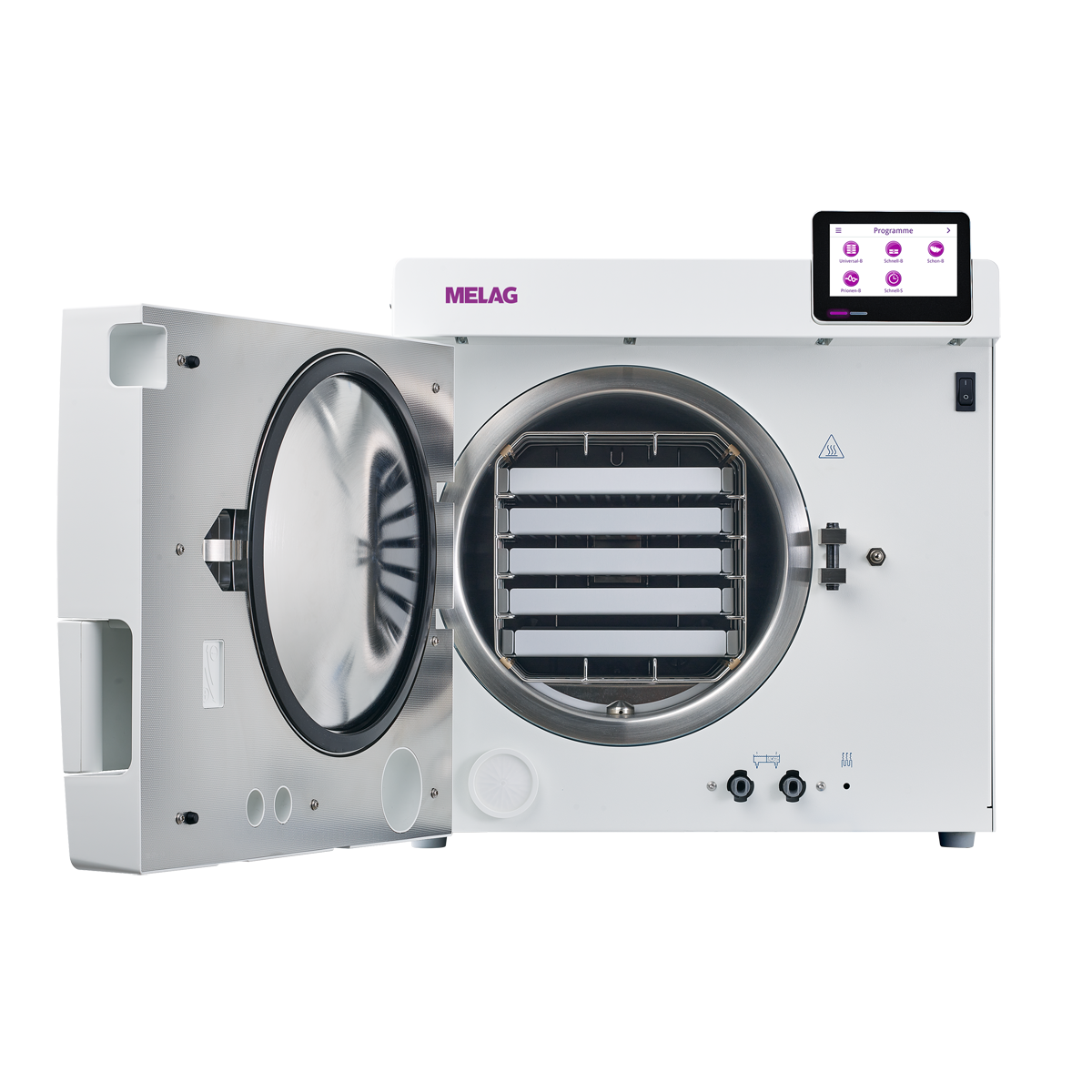

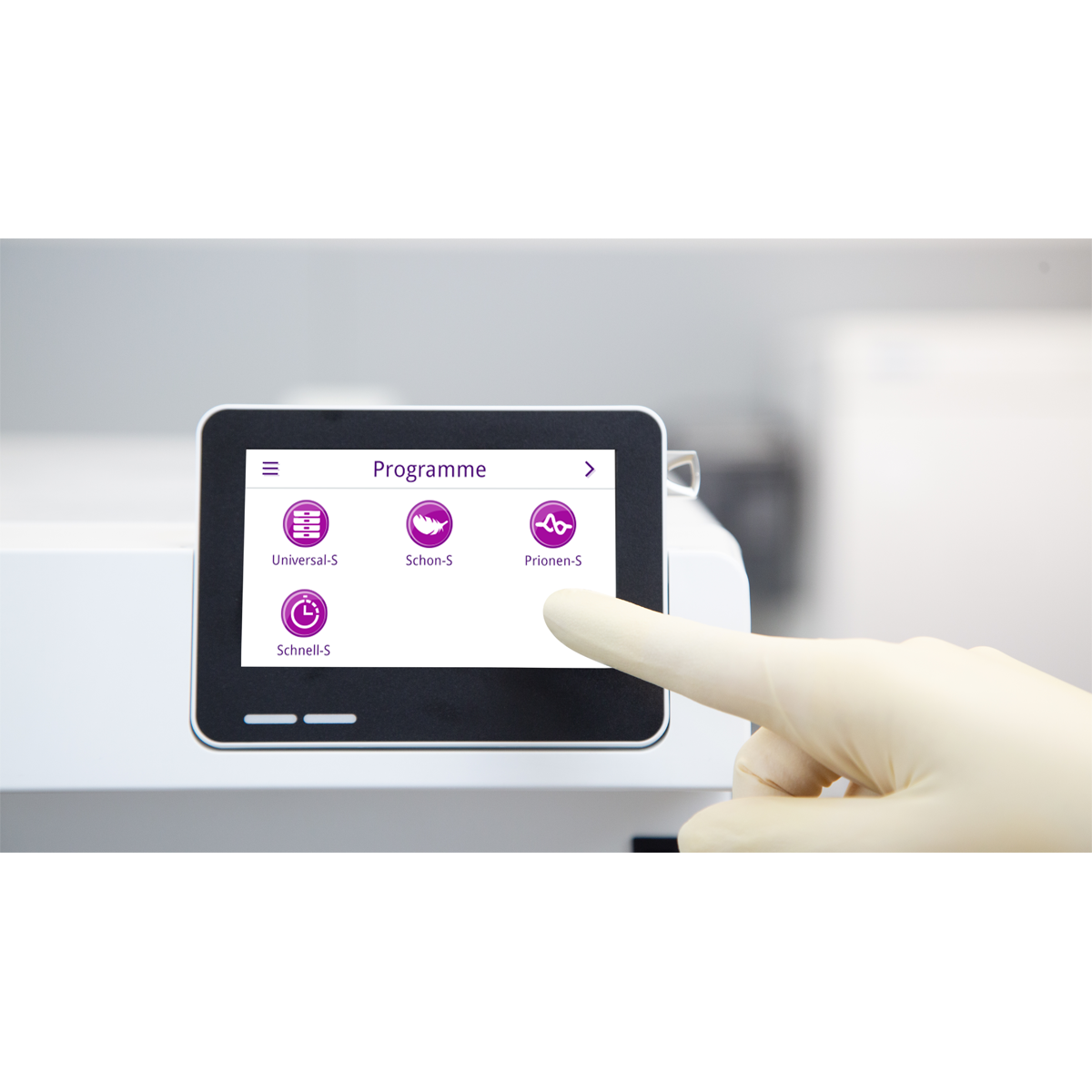

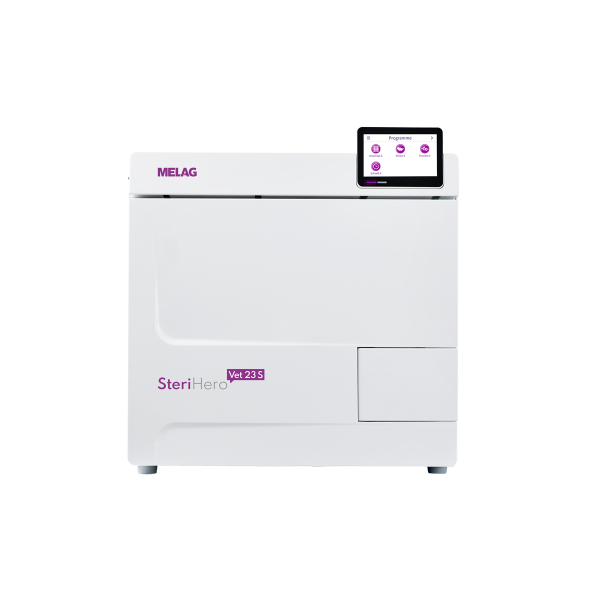

No matter what big tasks the day holds in store for you, SteriHero Vet B class has your back. Thats because the brand-new stand-alone autoclave was designed specifically for veterinary medicine. From the features to the price! Trendsetting technologies, an incredibly advanced display and the unique MELAG quality – made in Germany give you the superpower to change everything.
| SteriHero Vet 23 B | |
| Device dimensions (H x W x D) | 50 x 47 x 64 cm |
| Empty weight | 49 kg |
| Operating weight | 68 kg |
| Floor loading (normal operation) | 3.9 kN/m² |
| Floor loading (pressure resistance test) | 4.2 kN/m² |
| Sterilization chamber | |
| Diameter | 25 cm |
| Depth | 45 cm |
| Volume | 22.6 l |
| Electrical Specifications | |
| Electricity supply
 |
220-230 V, 50/60 Hz |
| Max. voltage range | 198-253 V |
| Electrical power | 2100 W |
| Building fuses | Separate power circuit min. 10 A, residual current device with rated residual current = 30 mA |
| Overvoltage category | transient overvoltage up to the values of overvoltage category II |
| Degree of air pollution
(in accordance with EN 61010-1) |
category 2 |
| Length of power cable | 2 m |
| Ambient conditions | |
| Installation location
 |
interior of a building |
| Installation surface
 |
level, horizontal and waterproof/sealed surface |
| Noise emission | 60.9 dB(A) |
| Waste heat (with max. load)
 |
0.9 kWh |
| Ambient temperature
 |
5-40 °C (ideal range 16-26 °C) |
| Relative humidity | max. 80 % at 31 °C, decreases in a linear fashion up to max. 50 % relative humidity at 40 °C |
| Degree of protection
(following IEC 60529) |
IP20 |
| Transport and storage conditions | Temperature: -18 to +50 °C, air humidity: < 80% |
| Max. altitude | 3000 m |
| Feed water | |
| Max. water temperature
 |
35°C |
| Water quality
 |
distilled or demineralised feed water in accordance with EN 13060, Appendix C (with central demineralisation system
max. conductivity 5 ÎĽS/cm) |
| Recommended flow pressure
 |
1.5-4.0 bar at 1.4 l/min |
| Min. water pressure (static)
 |
2 bar |
| Max. water pressure (static)
 |
8 bar |
| Max. water consumption7)
 |
approx. 1 l |
| Water volume (initial commissioning)
 |
min. 1.25 l |
| Min. filling volume
(internal storage tank, feed water side) Â |
1.25 l
|
| Volume
(internal storage tank, feed water side) |
5.3 l (approx. 7 cycles) |
| Wastewater | |
| Max. water temperature short-term
 |
80 °C |
| Volume (internal storage tank,
wastewater side) Â |
4.8 l |
*Professional Installation required to validate initial 12 Month Warranty. Followed by a Service at 12 Months to validate additional 12 Month Warranty. All installation and Servicing must be carried out by a Melag Authorised Service Agent.
