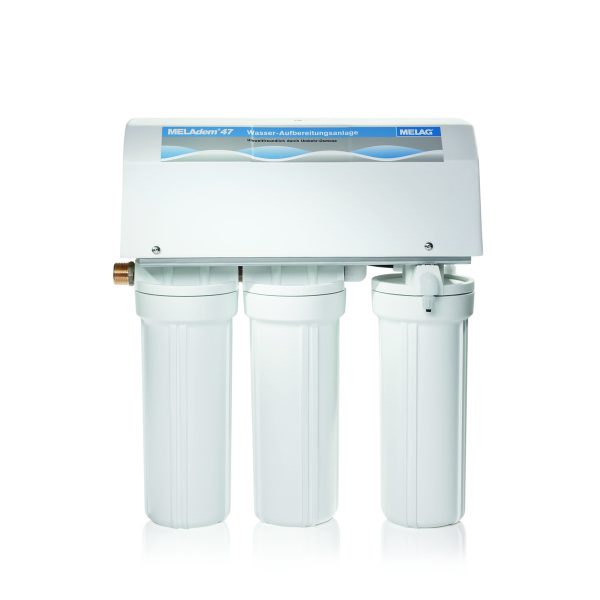

Increasing hygiene requirements in the processing of medical products can involve the frequent sterilizing of instruments. The consequent increased need for high quality demineralised water is provided amply by the MELAdem 47 and at low cost. The reversal of the physical principle of osmosis is an extremely environmentally-friendly type of water processing. MELAdem 47 produces around 3-5 litres of feed water per hour, so that several MELAG steam sterilizers can be supplied at the same time.
| Product type | MELAdem 47 |
| Product dimensions (H x W x D) | 46 x 40 x 18 cm |
| Total unit weight with filters | approx. 6 kg |
| Pressure tank | |
| Height | 40 cm |
| Diameter | approx. 28 cm |
| Volume | approx. 10.5 l (with 0.4-0.5 bar primary pressure, final pressure approx. 4 bar) |
| Empty weight | 3.8 kg |
| Osmosis module | |
| RO membrane | TFC bacteria resistant, wound module |
| Retention RO membrane | nominal salt retention approx. 95 % |
| Filter | |
| Fine filter I | particle fine filter |
| Fine filter II | activated carbon filter |
| Afterfilter I | ion exchanger, contents approx. 0.7 l |
| Cold water | |
| Cold water | tap water |
| Bacteriological quality | drinking water |
| Length inflows/outlets | approx. 2.5 m feed line (3/4″) | approx. 6 m pressure line (6 x 1 mm) |
| Iron content | max. 0.1 mg/l |
| Total salt content | max. 1500 mg/l |
| Water pressure min./max.1) | 2-6 bar |
| Water temperature min./max. | 5-35 °C |
| pH value min./max. | 4.0-10.0 |
| Permeate | |
| Capacity | 190 l/day (value at 4.5 bar/25 °C) | 127 l/day (value at 4.5 bar/15 °C) | 103 l/day (value at 4.5 bar/10 °C) |
| Conductivity | approx. 20-30 µS/cm at 600 µS/cm cold water | < 1 µS/cm at 600 µS/cm cold water and non-exhausted ion exchanger |
| Production | 20-25 % |
