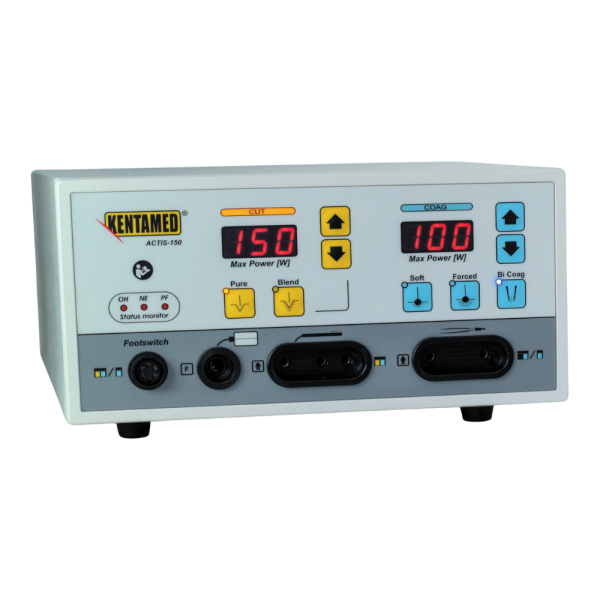

KENTAMED ACTIS-150 ELECTROSURGICAL UNIT

MINOR & MEDIUM SURGERY
190018K

Application: Ideal for minor and medium surgical procedures.

The Kentamed ACTIS-150 Electrosurgical Unit is an intelligent, reliable, and cost-effective solution for electrosurgical needs. This microprocessor-controlled unit combines precision with safety, ensuring dependable performance across a wide range of applications.

  • Powerful Output: Maximum output power of 150W.
  • Versatile Operating Modes:
    • Pure CUT
    • Blend CUT
    • Soft COAG
    • Forced COAG
    • Bipolar COAG



  • Independent Settings: Each mode features independent power settings displayed via a digital LED.
  • Memory Function: Retains the last power setting used for convenience.
  • Safety Features:
    • Overheating (OH) and Power Failure (PF) sensors.
    • Automatic and immediate shutdown of output power if an error is detected.
    • Audible alarms for abnormal parameters.
  • User-Friendly Design: Front panel status monitor for easy operation and tracking.
  • Durability: Backed by a 3-year warranty for reliable long-term use.



Included

  • 1 reusable finger-switch handle with a 3m cable
  • 6 reusable monopolar active electrodes
  • 1 reusable SPLIT neutral electrode with a silicone belt for secure patient fixation
  • 10 single-use self-sticking SPLIT neutral electrodes
  • 1 reusable cable for SPLIT neutral electrodes
  • 1 reusable bipolar cable (3m)
  • 1 reusable bipolar forceps
  • 1 single or double footswitch
  • 1 power cord (3m)
  • 1 User Manual



The Kentamed ACTIS-150 is a dependable and advanced electrosurgical unit, designed to deliver precision, efficiency, and safety for professionals in medical, dental, and veterinary fields.

Working Frequency [MHz| 375
Modulation Frequency [kHz] 25
Patient Safety NEMSY (Neutral Electrode Safety System), (NE)
Power Failure (PF)
Overheating (OH)
Activation Double/Single Footswitch and Fingerswitch Handle
Applied Parts Type BF
Dimensions 260mm x 295mm x 125mm (WDH)
Weight 7.5kg



Mode Maximal Output Power Crest Factor
Pure CUT 150 W / 500 Ohms 1.5
Blend CUT 120 W / 500 Ohms 1.9
Soft COAG 100 W / 300 Ohms 1.5
Forced COAG 70 W / 500 Ohms 2.4
Bipolar COAG 100 W / 50 Ohms 1.5
