Features
Standard Parameters
Your flexible choice for veterinary monitoring

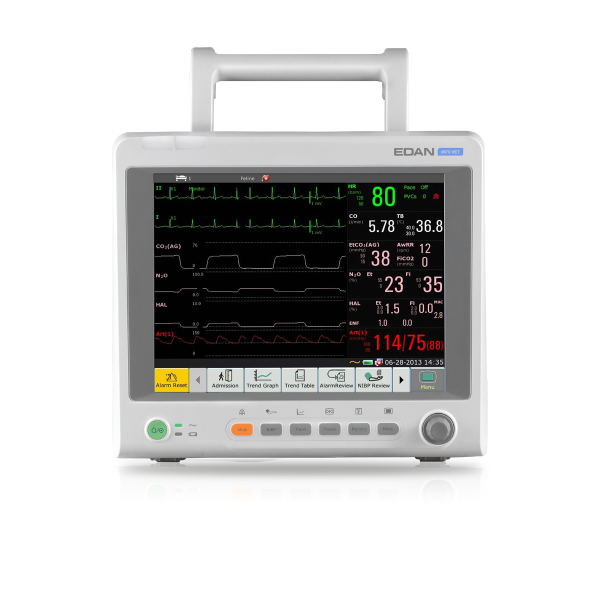

With a wide range of optional parameters the iM60 VET & iM70 VET are able to satisfy various veterinary monitoring demands from general cares to operation theatres.
Optional Parameters
Optional Parameter Modules must be installed prior to shipping from the supplier and cannot be retrofitted. Please contact us with your parameter requirements for the iM Vet Series Units, and pricing and availability can be provided.
ALL IM VET SERIES UNITS ARE SPECIAL ORDER ONLY
No cancellations or returns from firm order.
| iM60 | iM70 | |
| Size | 303mm W x 254mm H x 161mm D | 327mm W x 285mm H x 158mm D |
| Weight | <3.8kg | <4.5kg |
| Power Supply | 100V – 240V, 50Hz/60Hz | |
| Current = 1.4 A – 0.7 A | ||
| Fuse: T3.15 AH, 250 VP | ||
| Display | Display screen: 10.4 inch colour TFT, supporting touch screen Resolution: 800×600 | Display screen: 12.1 inch color TFT, supporting touch screen Resolution: 800×600 |
| Battery Operating Times | 2500mAh >3.5h | 5000mAh >7h |
| Charge Time | <3.5h 100% | <6.5h 100% |
| <3.15h 90% | <5.85h 90% | |
| Record Width | 48mm |
| Record Paper Width | 50mm |
| Paper Speed | 12.5 mm/s, 25 mm/s, 50 mm/s |
| Trace | 3 |
| ECG | |
| Lead Modes | 3 Electrodes: I, II, III |
| 5 Electrodes: I, II, III, aVR, aVL, aVF, V | |
| Gain Selection | 1.25 mm/mV (×0.125), 2.5 mm/mV (×0.25), 5 mm/mV (×0.5), 10 mm/mV (×1), 20 mm/mV (×2), , 40 mm/mV (×4), AUTO gain |
| Accuracy | ±1% or 1 bpm, whichever is greater |
| Resolution | 1 bpm |
| Sensitivity | ≥ 300 μVPP |
| Respiration | |
| Measuring Range | Adult/Paediatric – 0 rpm to120 rpm |
| Neonate – 0 rpm to150 rpm | |
| Accuracy | Adult/Paediatric – 6 rpm to 120 rpm: ±2 rpm 0 rpm to 5 rpm: not specified |
| Neonate – 6 rpm to 150 rpm: ±2 rpm 0 rpm to 5 rpm: not specified | |
| Resolution | 1 rpm |
| NIBP | |
| Adult Measuring Range | SYS: 25 mmHg to 290 mmHg |
| DIA: 10 mmHg to 250 mmHg | |
| MAP: 15 mmHg to 260 mmHg | |
| Pediatric Measuring Range | SYS: 25 mmHg to 240 mmHg |
| DIA: 10 mmHg to 200 mmHg | |
| MAP: 15 mmHg to 215 mmHg | |
| Neonatal Measuring Range | SYS: 25 mmHg to 140 mmHg |
| DIA: 10 mmHg to 115 mmHg | |
| MAP: 15 mmHg to 125 mmHg | |
| Inflation Pressures | Adult – Default: 160 mmHg – Range:80/100/120/140/150/160/180/200/220/240 mmHg |
| Paediatric – Default: 140 mmHg – Range:80/100/120/140/150/160/180/200 mmHg | |
| Neonatal – Default: 100 mmHg – Range:60/70/80/100/120 mmHg | |
| Dual Independent Channel Overpressure Protection | Adult (297±3) mmHg |
| Paediatric (245±3) mmHg | |
| Neonatal (147±3) mmHg | |
| Accuracy | MAP ±5 mmHg |
| SYS/DIA 8 mmHg | |
| Resolution | 1 mmhg |
| Technique | Oscillometry |
| Modes | Manual, Auto, Continuous, Sequence |
| Measuring Parameter | SYS, DIA, MAP, PR |
| Pressure Units | kPa, mmHg, cmH2O |
| IBP | |
| Venipuncture pressure | Adult – Default: 60 mmHg – Options: 20 mmHg, 30 mmHg, 40 mmHg, 50 mmHg, 60 mmHg, 70 mmHg, 80 mmHg, 90 mmHg, 100 mmHg, 110 mmHg, 120 mmHg |
| Paediatric – Default: 40 mmHg – Options: 20 mmHg, 30 mmHg, 40 mmHg, 50 mmHg, 60 mmHg, 70 mmHg, 80 mmHg | |
| Neonatal – Default: 30 mmHg – Options: 20 mmHg, 30 mmHg, 40 mmHg, 50 mmHg | |
| Respiration | |
| Measuring Range | 0% – 100% |
| Accuracy | Adult/Paediatric – ±2% (70% to 100% SpO2)
Undefined (0% to 69% SpO2) |
| Neonate – ±3% (70% to 100% SpO2)
Undefined (0% to 69% SpO2) |
|
| Resolution | 1 |
| Pulse Rate | |
| SpO2 PR | EDAN – 25 bpm to 300 bpm – Accuracy ±2 bpm |
| Nellcor – 20 bpm to 300 bpm – Accuracy ± 3 bpm (20 bpm to 250 bpm) | |
| NIBP SpO2 | EDAN – 40 bpm to 240 bpm – Accuracy ±3 bpm or 3.5%, whichever is greater |
| Omron – Adult/Pediatric mode: 40 bpm to 200 bpm Neonatal mode: 40 bpm to 240 bpm – ±2 bpm or 2% of the readings | |
| SunTech – 30 bpm to 220 bpm – Accuracy ±3 bpm or ±2%, whichever is greater | |
| IBP | EDAN – 20 bpm to 300 bpm – Accuracy 30 bpm to 300 bpm: ±2 bpm or ±2%,whichever is greater; 20 bpm to 29 bpm: undefined |
| Temp | |
| Technique | Thermal resistance |
| Position | Skin, oral cavity, rectum |
| Unit | °C, °F |
| Measuring Range | 0 °C to 50 °C(32 ºF to 122 ºF) |
| Resolution | 0.1 °C (0.1 ºF) |
| Accuracy | 1 ±0.3 °C |
| Refresh Time | Every 1 s to 2 s |
| Temperature Calibration | At an interval of 5 to 10 minutes |
