You decide: Extra large or extra extra large.

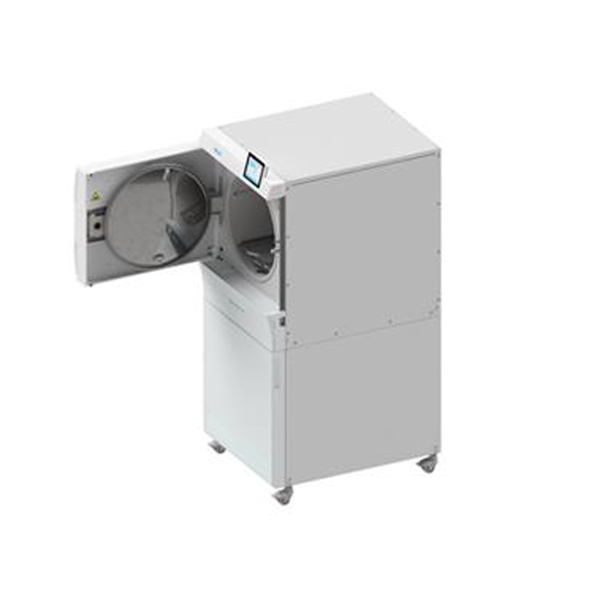

Sterilising up to 70 kg of instruments in just 23 – 50 minutes – is that possible? Yes, with Cliniclave 45. With 4 models, the Cliniclave Series offers the greatest possible flexibility, outstanding performance and smart functions. Discover the unique XXL device concept available as a single or double door unit with a chamber size of 100 – 200 litres.
Quick-Fact: Sterilisation in record time.
The Cliniclave 45 series can do more. And so can you. With the Double Jacket Technology, you sterilise at double speed in only 13 min. with the Quick Program.
Large chamber. Huge benefits.
The Cliniclave Series has been designed for large loads down to the smallest detail. The sterilisation of large quantities of instruments and textiles and their quick availability is one of the most important requirements in clinics, large practices and outpatient centers. With a load capacity of up to 70 kg of instruments or 14 kg of textiles, the Cliniclave 45 Series provides far greater performance than almost all other large steam sterilisers.
Extra-large display. For extra-large operating comfort.
The incredibly advanced Smart-Touch Display enables intuitive operation, helps to avoid errors and to find all important information quickly.
But that’s not all: The integrated ProControl approval software allows complete documentation. For secure traceability, an individual PIN can be assigned for all users. Authentication for batch approval is thus carried out quickly and securely on the display.
Four models. For the greatest possible flexibility.
Chose from between 4 different versions of the Cliniclave Series: Whether as a single or double door version for 1 STU or 2 STU, every Cliniclave 45 is fitted with the same cutting-edge technologies.
This permits safe and efficient sterilisation tailored to the individual
requirements depending on the number of patients, variety of instruments, spatial situation, regional standards and guidelines.
SPECIAL ORDER ONLY
No cancellations or returns from firm order
| Program | Operating Times | Drying Time | Loading | |
| Cliniclave
45 |
DRYtelligence* | Time Controlled | ||
| Universal | 19-35 min | > 4 min | 20 min | Single and multiple wrapping |
| Quick B | 17-22 min | > 4 min | 10 min | Single and unwrapped instruments (no textiles) |
| Quick S | 13-17 min | > 4 min | 6 min | unwrapped (no textiles) |
| Gentle | 35-36 min | > 4 min | 20 min | Single and multiple wrapping |
| Prion | 34-50 min | > 4 min | 20 min | Single and multiple wrapping |
| * DRYtelligence® automatically adapts the drying process to your load. Thanks to intelligent drying, optimal drying results are achieved at all times | ||||
| Model | Cliniclave 45 |
| Device Version | single-door version |
| Chamber Volume | 105 litres |
| Capacity | 1 StU |
| Door Hinge | Selectable: left or right |
| Chamber Diameter | Ø 44 cm |
| Chamber Depth | 72 cm |
| Dimensions (HxWxD) | 160 x 65 x 91 cm |
| Empty Weight | 244 kg |
| Operation Weight | 292 kg (incl. MELAdem® 56) |
| Power Supply | 3×380-415 V, 50/60 Hz, 10.500 W, 16 A |
