BUTTERFLY iQ+ VET ULTRASOUND

Revolutionary Imaging in the Palm of Your Hand

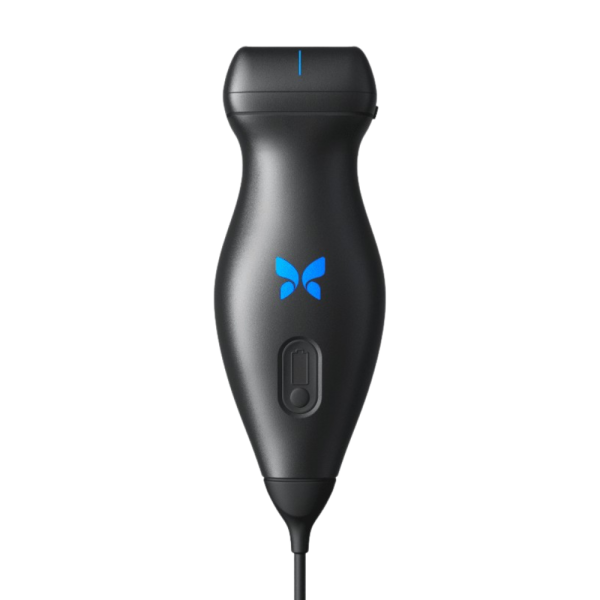

The Butterfly iQ+ Vet is a cutting-edge, handheld ultrasound designed specifically for veterinary use. With a single probe that delivers whole-body imaging and seamless connectivity to your mobile device, it brings powerful diagnostic capabilities to clinics, farms, and remote fieldwork alike. Built with durability in mind and supported by intuitive software, the iQ+ Vet makes ultrasound more accessible, efficient, and adaptable than ever before.

Imaging Modes

• B-mode
• M-mode
• Color Doppler

Scan Depth

• Minimum: 2 cm
• Maximum: 30 cm

Measurements and Annotations

• Linear measurements (up to 4)
• Ellipse measurement (1 maximum)
• Text labels (custom or select from over 70 preset-specific labels)

Tools

• Biplane Imaging™
• FLASH Protocols (Abdominal & Thoracic)
• Needle Viz™
• Midline marker

Controls

• Gain
• Time Gain Compensation (TGC) (near, mid, and far)
• Depth

Presets

• Abdomen (Curved Field of View)
• Abdomen Deep (Curved)
• Bladder (Curved)
• Cardiac (Sector)
• Cardiac Coherence (Sector)
• Cardiac Deep Coherence (Sector)
• Cardiac Harmonics (Sector)
• Cardiac Deep (Sector)
• Cardiac Deep Harmonics (Sector)
• Musculoskeletal (Linear)
• Musculoskeletal Equine (Linear)
• Nerve (Linear)
• Ophthalmic (Linear)
• Small Organ (Linear)
• Vascular: Access (Linear)

Compatibility

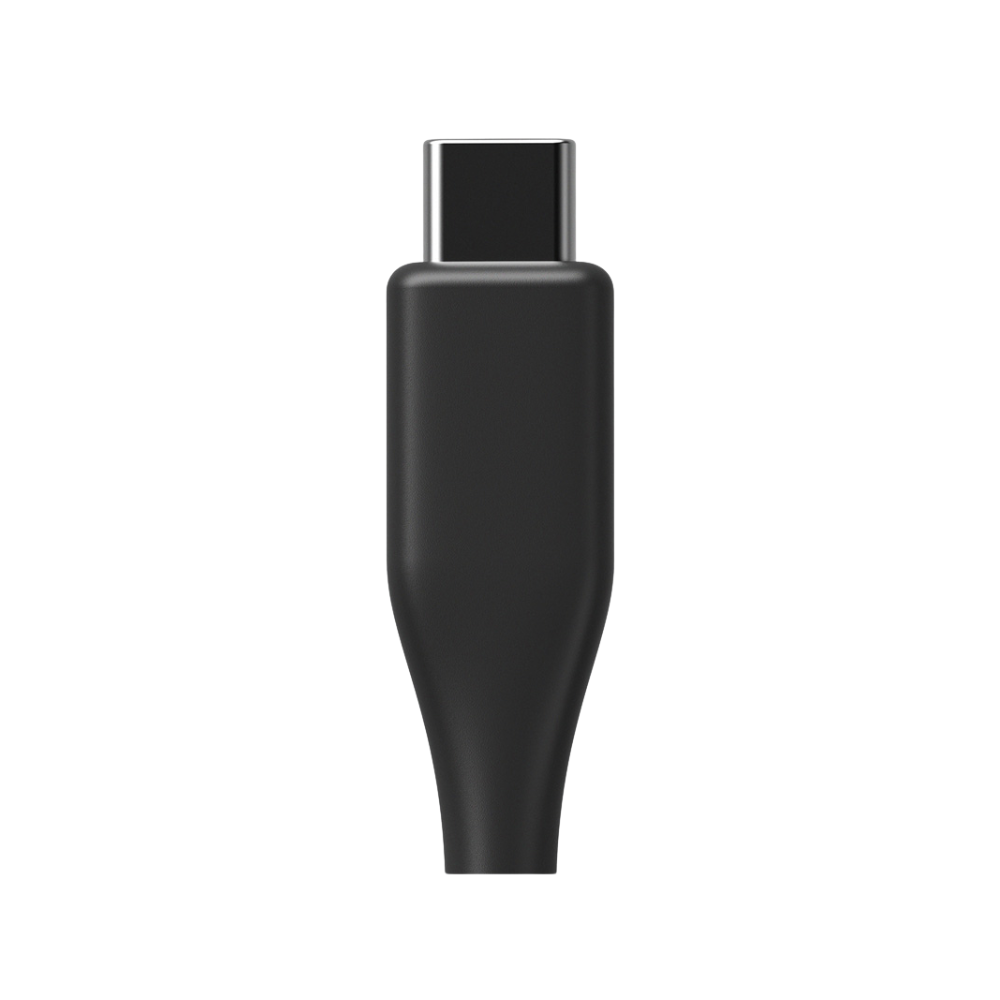

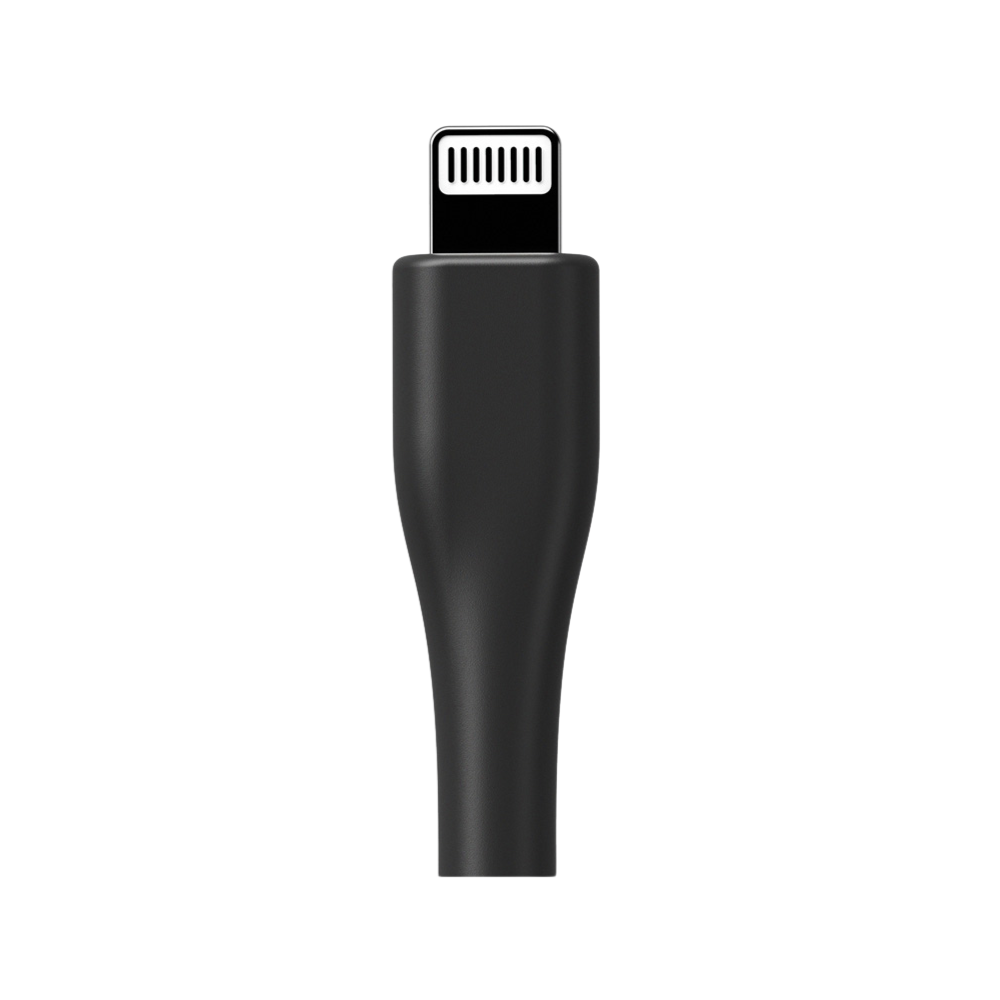

Compatible with select iOS and Android devices.

Cleaning Instructions

1. After each use of the probe, use one of the recommended liquid saturated wipes (SuperSani-Cloth Germicidal Disposable Wipes by PDI, Inc., Super Sani-Cloth AF3 Disposable Wipes by PDI, Inc., or a lint-free cloth moistened with water) to remove ultrasound transmission gel from the probe.
2. Disconnect the probe from the mobile device.
3. Wipe the probe, strain relief, cable, and connector with one of the recommended liquid saturated wipes for one (1) minute and until visibly clean.
4. Change the wipes as necessary and repeat the above step until the probe is visibly clean.
5. To dry the probe, use a soft cloth to blot the lens dry. Do not wipe the lens. Dry the rest of the probe, cable, strain relief, and connector.
6. Visually inspect the probe in a well-lit area to ensure all surfaces are clean. If the probe is not clean, repeat the cleaning steps above.
7. Dispose of cleaning material in accordance with all applicable regulations.
